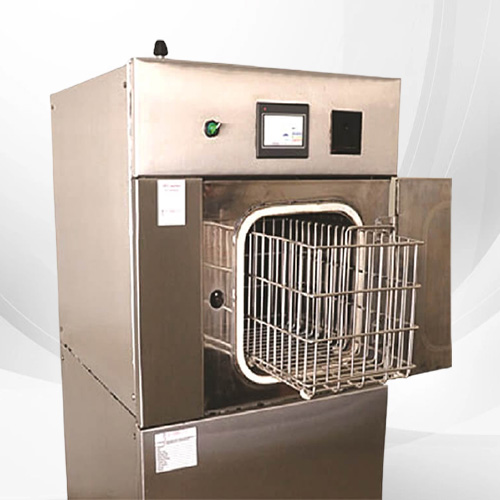

Ethylene Oxide (E.T.O) Sterilizer
Ethylene Oxide (E.T.O) Sterilizer Manufacturers and Suppliers
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
- Vertical Triple wall design has triple chamber for steam and water.
- Working chamber made of Stainless Steel 316 grade of 3 mm thickness.
- Outer cover made of stainless steel 1mm thick.
- Lid, flange & bottom sheet also made of stainless steel. All joints argon welded.
- Joint less silicon gasket, heavy duty industrial flange heater.
- Pressure range: 15 to 22 PSI, factory set at 15 PSI.
- Lid fitted pressure gauge 0- 30 PSI, safety spring loaded pressure valve, and steam release valve.
- Hydraulically tested at 60 PSI.
- Single lever operated Door.
- Electrical: 230 V/ 32A / 50Hz.
- Temperature Control: Microprocessor based digital display.
- Temperature Sensor : PT - 100 Temperature Range: 121¡ÆC to 125¡ÆC
- Temperature resolution : 0.1¡ÆC. Temperature Accuracy:¡¾ 0.5¡ÆC
- Safety valve for chamber & Jacket.
- Automatic purging system.
- WLC System for Heater protection.
- Electronic safety system for MICROPROCCESSOR BASED CONTROLLER AND WLC.
- Separate Ball Valves for water Inlet & Drainage.
- Dial type Pressure Gauge to indicate pressure in the Chamber.
- Pressure Release valve to release excess pressure from chamber.
- Audio visual Alarm system after completion of cycle.
- Gauge glass facility for water visibility.
