Vertical Autoclave Manufacturers and Suppliers

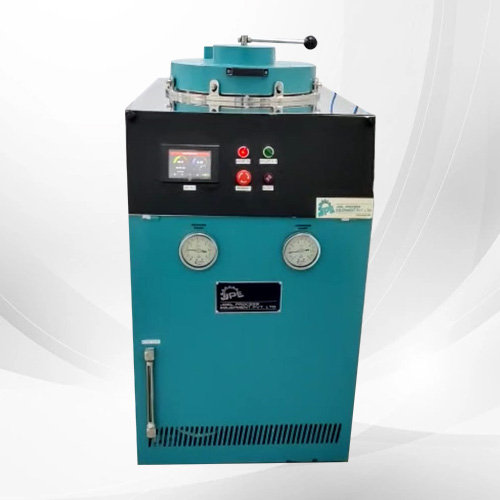

Single Lever

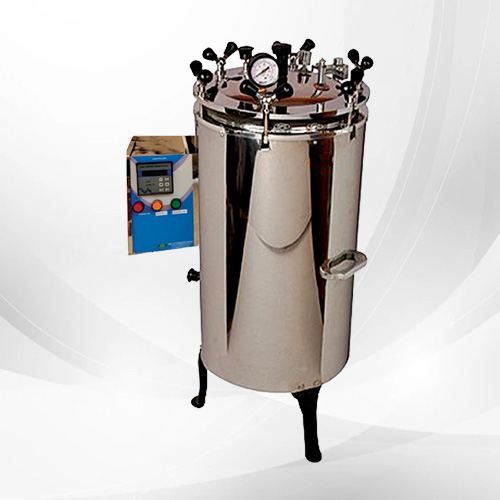

Wing Nut Type

Thermal Printer with FO Value Calculation

It can be used in Microbiology, Hospital, QC & Research laboratories, Pharmaceutical Industry etc.

Fully Automatic Model : Temperature automatically maintained by digital Controller, which controls / pressure and temperature with auto air purge, digital timer, auto steam exhaust, low water level cutoff.

PRODUCT DESCRIPTION
  • Vertical Triple wall design has triple chamber for steam and water.
  • Working chamber made of Stainless Steel 316 grade of 3 mm thickness.
  • Outer cover made of stainless steel 1mm thick.
  • Lid, flange & bottom sheet also made of stainless steel. All joints argon welded.
  • Joint less silicon gasket, heavy duty industrial flange heater.
  • Pressure range: 15 to 22 PSI, factory set at 15 PSI.
  • Lid fitted pressure gauge 0- 30 PSI, safety spring loaded pressure valve, and steam release valve.
  • Hydraulically tested at 60 PSI.
  • Single lever operated Door.
  • Electrical: 230 V/ 32A / 50Hz.
  • Temperature Control: Microprocessor based digital display.
  • Temperature Sensor : PT - 100 Temperature Range: 121°C to 125°C
  • Temperature resolution : 0.1°C. Temperature Accuracy:± 0.5°C
  • Safety valve for chamber & Jacket.
  • Automatic purging system.
  • WLC System for Heater protection.
  • Electronic safety system for MICROPROCCESSOR BASED CONTROLLER AND WLC.
  • Separate Ball Valves for water Inlet & Drainage.
  • Dial type Pressure Gauge to indicate pressure in the Chamber.
  • Pressure Release valve to release excess pressure from chamber.
  • Audio visual Alarm system after completion of cycle.
  • Gauge glass facility for water visibility.
